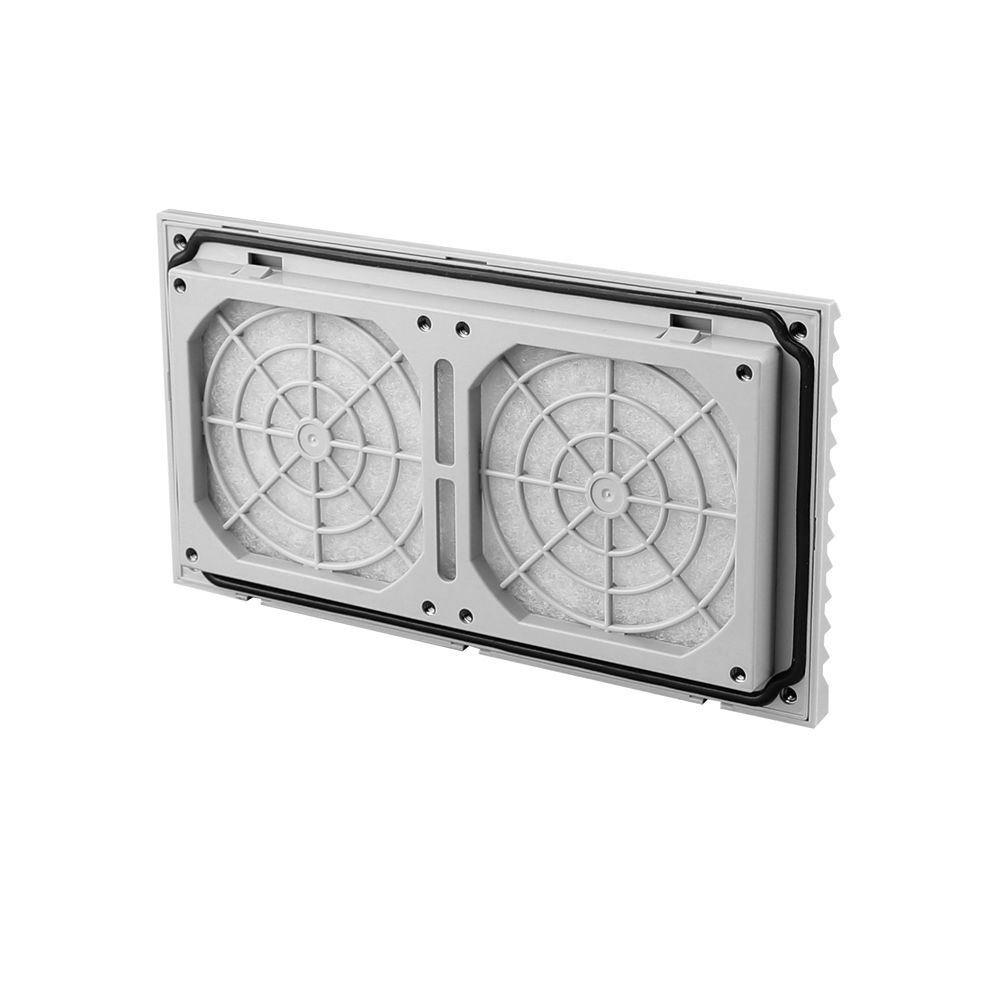

Filter Material: ABS
Flame Retardant Rating: UL94-V0 (Extra)
IP Rating: IP54
| Model | TB9810.230 | |
| Color | RAL7035 | RAL7032 |
| Material Code | 1013069 1013070 | 1013071 1013072 |
| Axial Fan | ZF-92S-230 | |
| Rated Operating Voltage (V/Hz) | 230/50/60 | |
| Airflow, Free Blowing | 120m³/h | |
| Axial Flow Fan | Automatic Shaded Pole Motor | |
| Rated Current (A) | 0.07/0.06 | |
| Power (W) | 5.5/5.3 | |
| Noise Level (dB) | 36/38 | |
| Operating Temperature Range | -10℃ to +55℃ | |
| Outlet Filter Model | TB9810:（RAL7035/RAL7032）1013077/1013078 | |
| Model | TB9810.115 | |
| Color | RAL7035 | RAL7032 |
| Material Code | 1013073 1013074 | 1013075 1013076 |
| Axial Fan | ZF-92S-115 | |
| Rated Operating Voltage (V/Hz) | 115/50/60 | |
| Airflow, Free Blowing | 120m³/h | |
| Axial Flow Fan | Automatic Shaded Pole Motor | |
| Rated Current (A) | 0.12/0.1 | |
| Power (W) | 11/13 | |
| Noise Level (dB) | 36/38 | |
| Operating Temperature Range | -10℃ to +55℃ | |
| Outlet Filter Model | TB9810:（RAL7035/RAL7032）1013077/1013078 | |
