Enclosure Material: ABS
IP Rating: IP20
Electromechanical humidity controllers are used to control heaters when the relative humidity exceeds 65%, thereby increasing the internal cabinet temperature to prevent moisture and corrosion.
| Model | TZK 011 |
| Material Code | 1018005 |
| Switching Humidity Tolerance | 4%RH(±3%) |
| Allowable Air Velocity | 15m/s |
| Maximum Switching Capacity | 250VAC, 5(0.2)A/DC 30W |
| Electrical Connection | 3-pole 2.5mm, 0.8Nm |
| Installation | 35mm DIN Rail Mounting |
| Connection Terminal | UL94V0 |

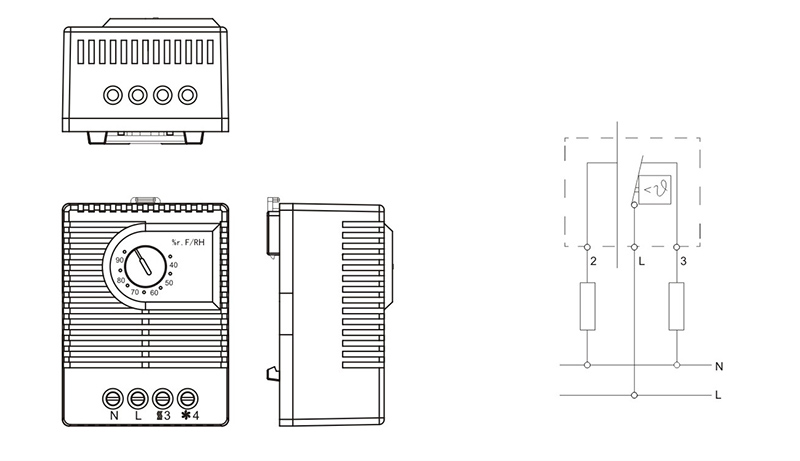

| Dimensional | 67x50x38mm |
| Operating/Storage Range | 0℃ to +80℃ |
