Enclosure Material: ABS
IP Rating: IP20

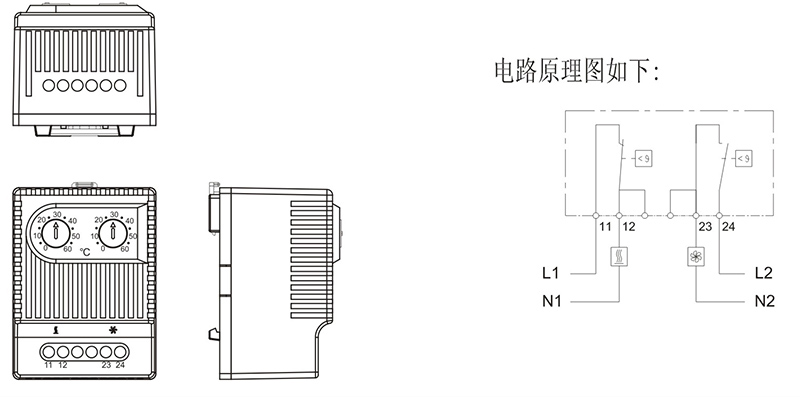

One thermostat contains two temperature settings.
Normally Open Contact: Commonly used to monitor filter fans and heat exchangers or to close the circuit and output a signal when the temperature exceeds the set value.
Normally Closed Contact: Commonly used to connect heaters and to open the circuit when the temperature reaches the set value.
| Model | TZR 011 |
| Material Code | 1018004 |
| Temperature Control Range | 0-60℃ |
| Switching Temperature Tolerance | 7K(±4K) |
| Sensing Element | Bimetal |
| Maximum Switching Capacity | 250VAC, 10(2)A/120VAC, 15(2)A DC 30W |
| Electrical Connection | 4-pole 2.5mm, 0.8Nm |
| Installation | 35mm DIN Rail Mounting |
| Connection Terminal | UL94V0 |
| Weight | 90g |
| Dimensional | 69x50x46mm |
| Operating/Storage Range | -5℃ to +80℃ |
