Filter Material: ABS
IP Rating: IP20

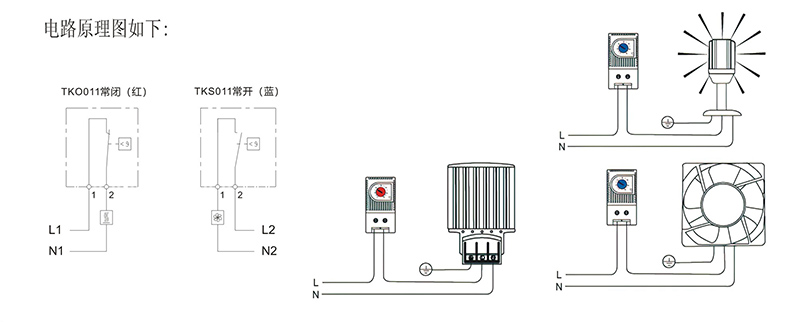

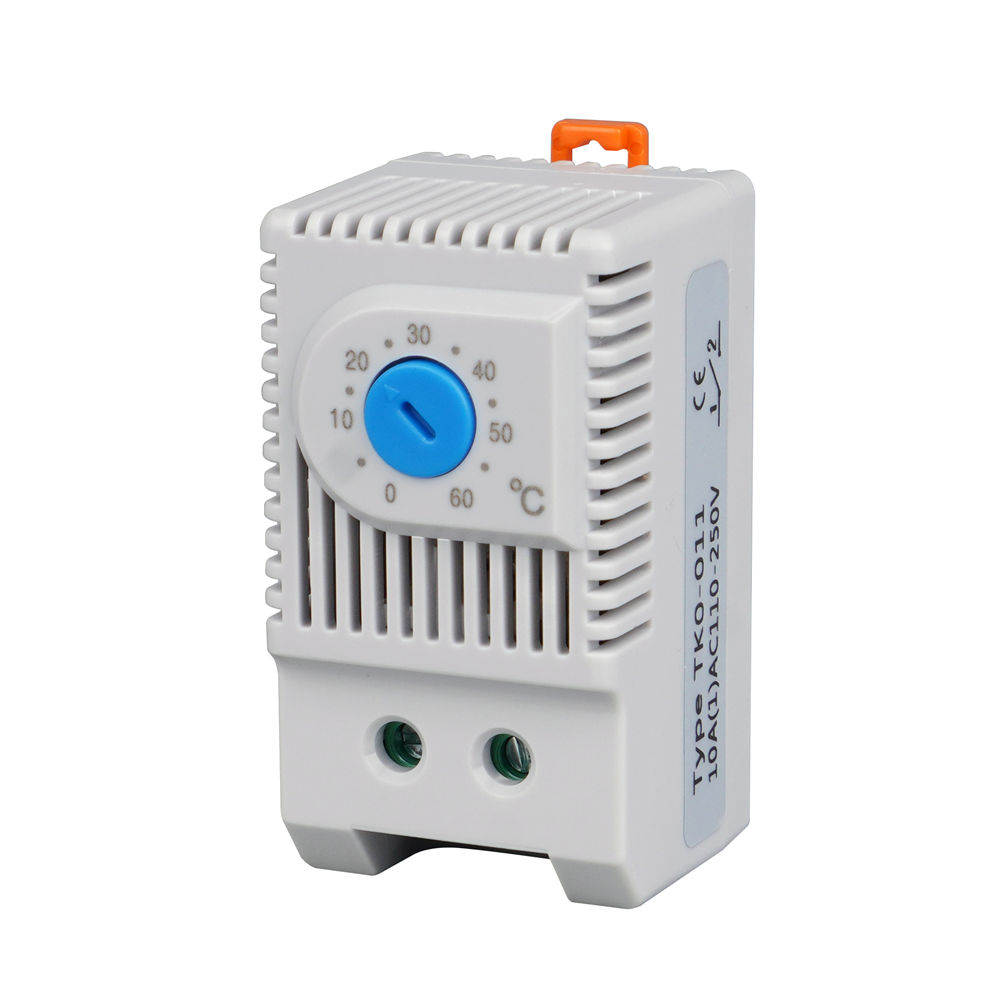

TKS011 Thermostat (Normally Open): Commonly used to monitor filter fans and heat exchangers or to close the circuit and output a signal when the temperature exceeds the set value.

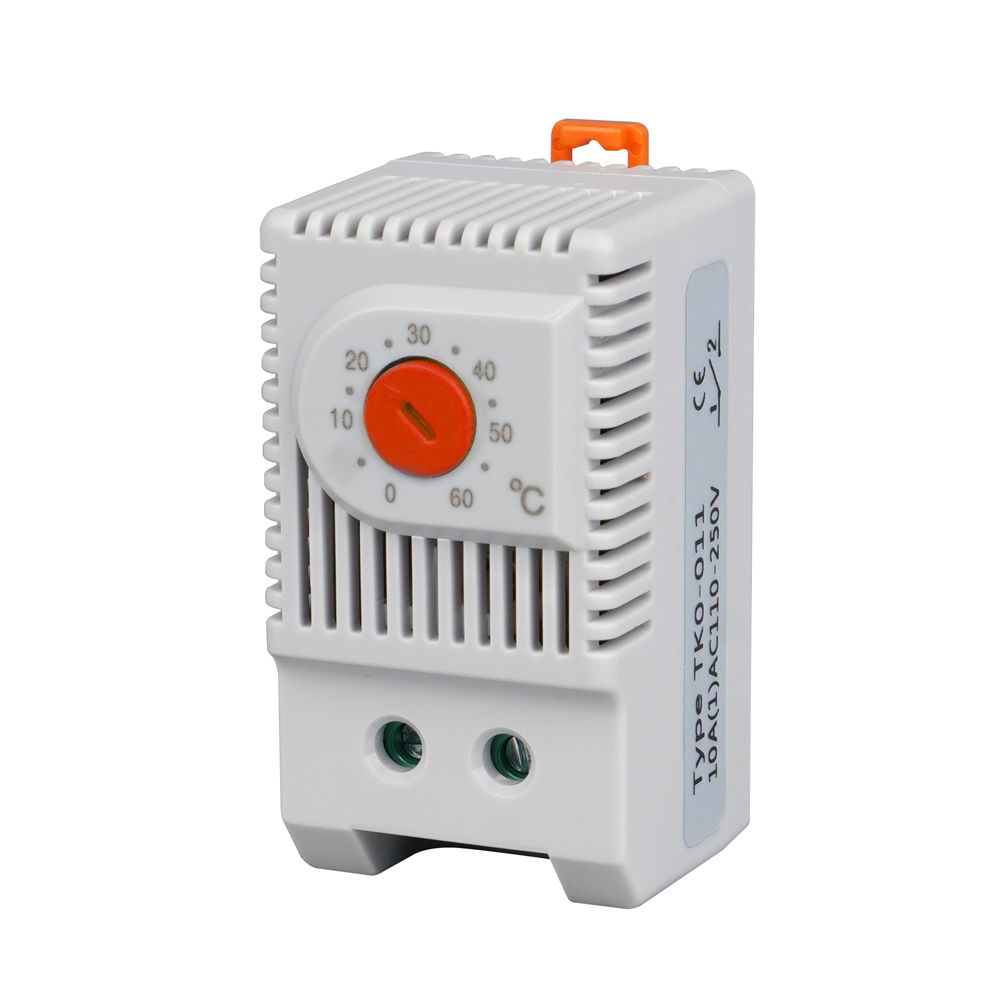

TKO011 Thermostat (Normally Closed): Commonly used to connect heaters and to open the circuit when the temperature reaches the set value.
| Model | TKS 011 | TKO 011 |
| Material Code | 1018002 | 1018003 |
| Temperature Control Range | 0-60℃ | |
| Status | Normally Open (Blue) | Normally Closed (Red) |
| Switching Temperature Tolerance | 7K(±4K) | |
| Sensing Element | Bimetal | |
| Maximum Switching Capacity | 250VAC, 10(2)A/120VAC, 15(2)A DC 30W | |
| Electrical Connection | 2-pole 2.5mm, 0.8Nm | |

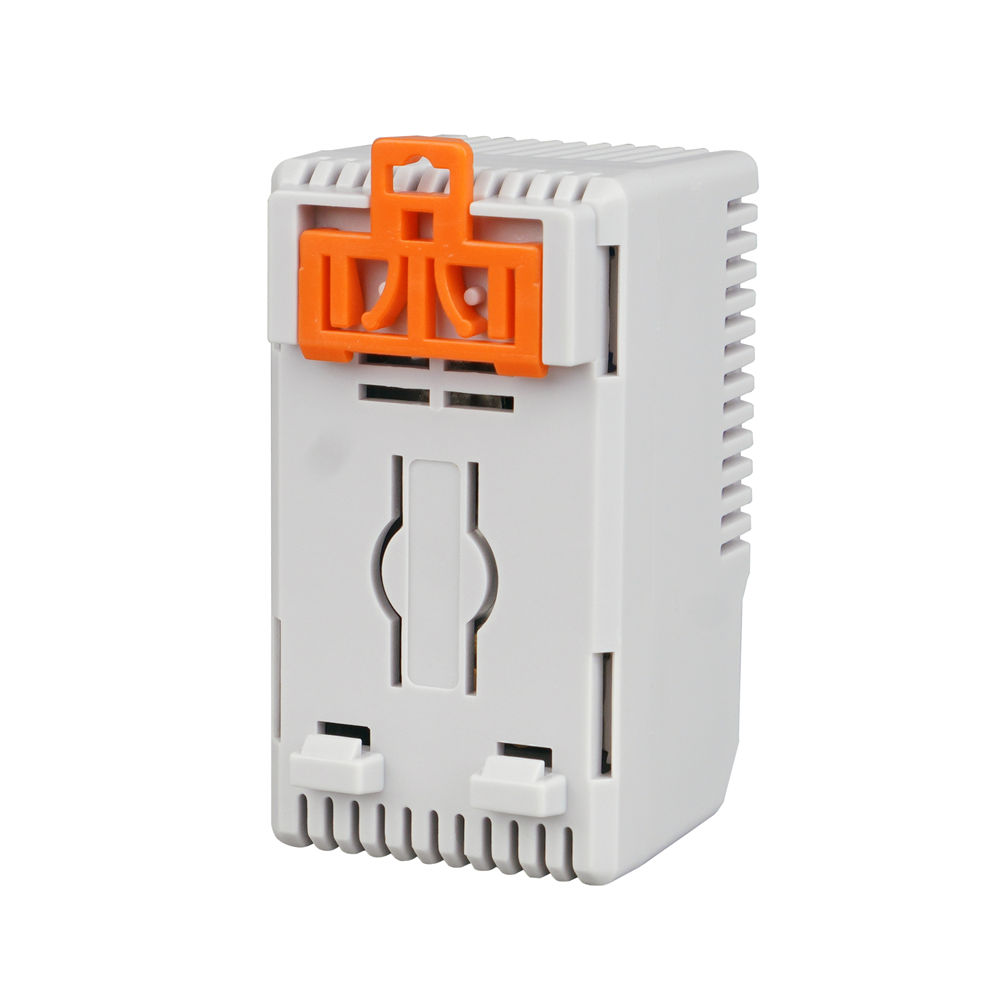

| Installation | 35mm DIN Rail Mounting | |
| Connection Terminal | UL94V0 | |
| Dimensional | 60x33x43mm | |
| Operating/Storage Range | -5℃ to +80℃ | |
