PRODUCT

Vortex-type industrial frequency centrifugal fan

310LWF4/5

产品描述

This fan is composed of an external rotor asynchronous motor, plastic impeller, and other components. It has the unique advantages of ventilation, heat dissipation, and self-cooling, with low motor temperature rise, thus extending the fan's life and reliability.


This fan features a backward-curved impeller, which has characteristics of compact structure, large airflow, high static pressure, low vibration, low noise, and easy installation. It is mainly used in clean workbenches, clean units, indoor duct dust removal, clean air conditioning systems, environmental protection, pollution control, and other refrigeration equipment.


型号参数
左右滑动表格查看更多
Model310LWF4310LWF5
Material Code10160151016016
MotorM2E10201-AFM2D10201-AF
Voltage (V)220V380V
Frequency (Hz)50/6050/60
Number of PhasesSingle-phaseSingle-phase/Three-phase
Input Power (W)110/150136/137
Current (A)0.50/0.650.40/0.47
Speed (RPM)1360/15401380/1540
Airflow (m³/h)2124/23702124/2370
Static Pressure (Pa)300/400300/400
Noise (dB)7070
Weight (kg)3.83.8
Capacitance3μF/450VDB-

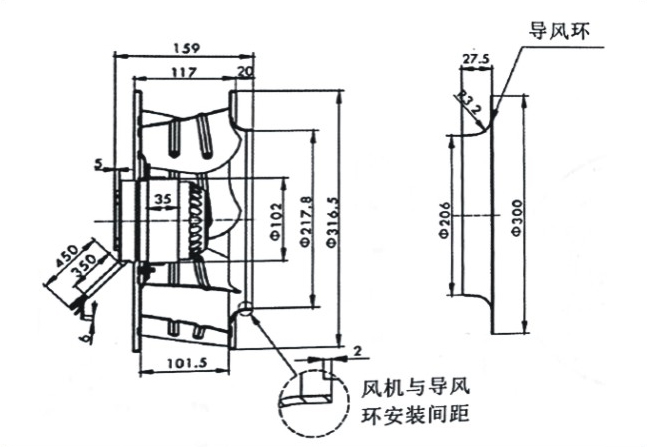

尺寸图

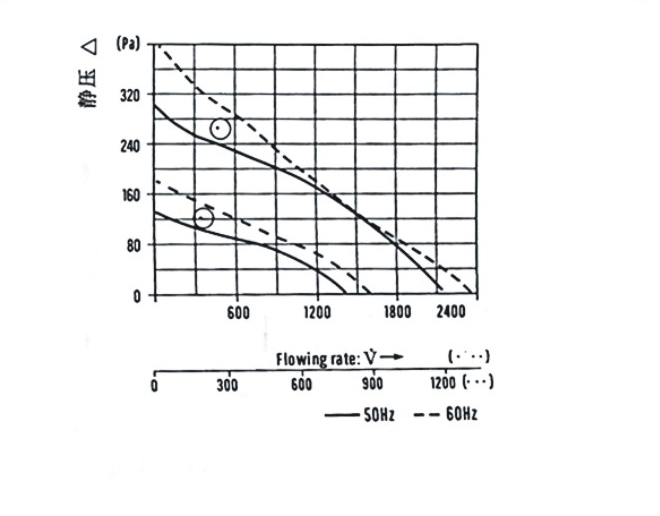

功率特性曲线
