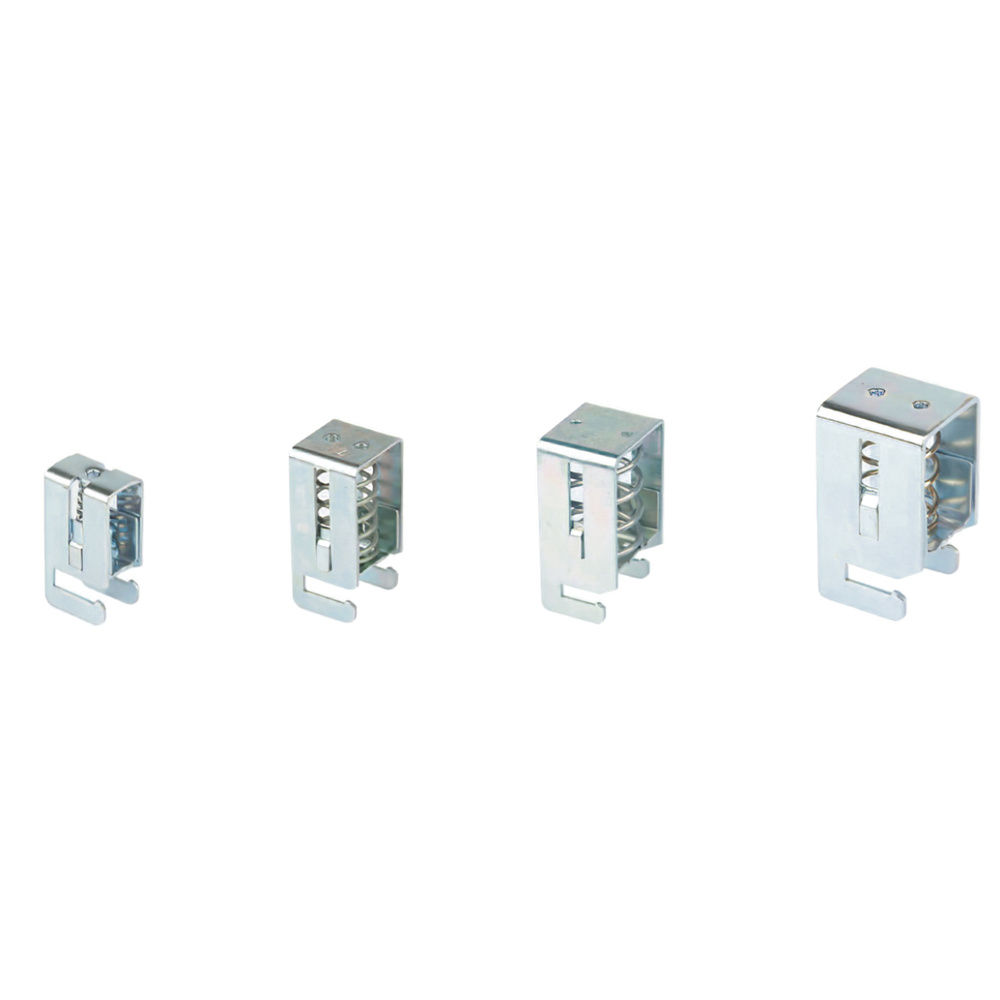

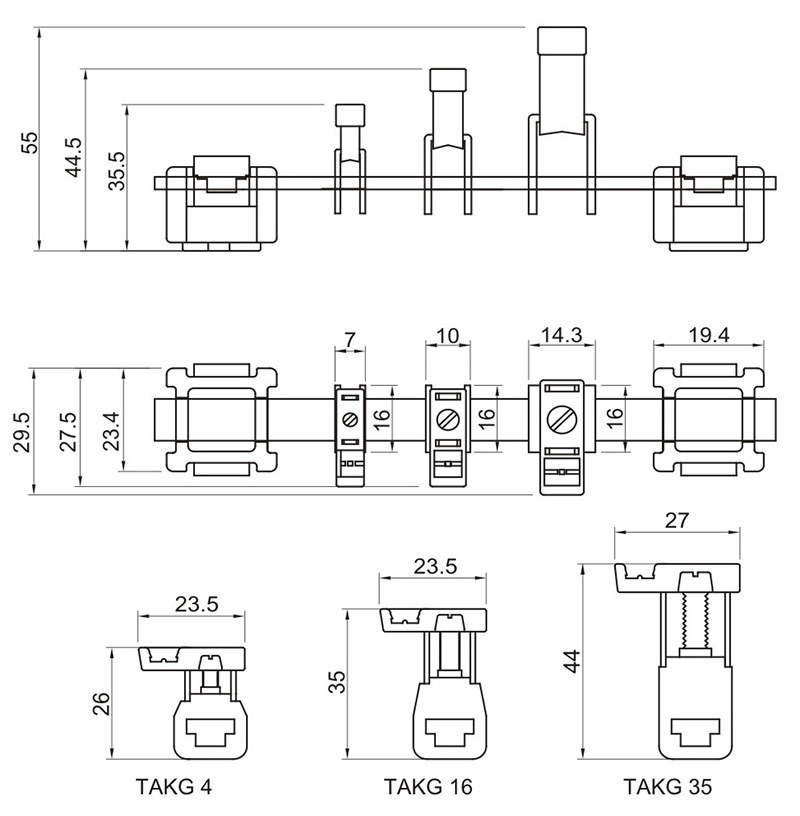

AK and AKG connector terminals are designed as fixed channel-mounted terminals. They are installed on 3x10mm busbars.
Their advantages include:
（1）Can be fixed on two types of rails.
（2）Due to the through-rail design, the terminal pressure block works reliably.
（3）Bolts do not loosen.

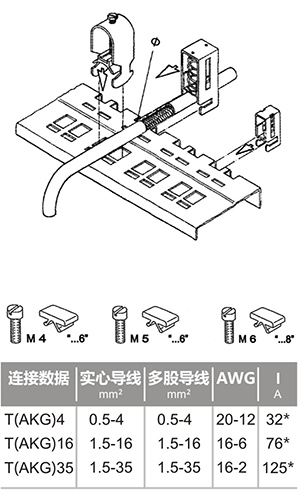

Two types of supports made of insulating material are available:
（1）Single support AB/SS (with screw) for busbars.
（2）Double spacer AB2/SS for staggered arrangement on both sides of the N and PE busbars.
Color: Gray
| Description | Color | Model | Material Code |
| N/PE: Connector Terminal: 4mm without Insulation Cap | TAKG 4 | 2011013 | |
| With Insulation Cap | Blue (for N) | TAKG 4 BU | 2011014 |
| Yellow-Green (for PE) | TAKG 4 GNYE | 2011015 | |
| Black (for L1, L2, L3) | TAKG 4 BK | 2011016 | |
| N/PE: Connector Terminal: 16mm without Insulation Cap | TAKG 16 | 2011017 | |
| With Insulation Cap | Blue (for N) | TAKG 16 BU | 2011018 |
| Yellow-Green (for PE) | TAKG 16 GNYE | 2011019 | |
| Black (for L1, L2, L3) | TAKG 16 BK | 2011020 | |
| N/PE: Connector Terminal: 35mm without Insulation Cap | TAKG 35 | 2011021 | |
| With Insulation Cap | Blue (for N) | TAKG 35 BU | 2011022 |
| Yellow-Green (for PE) | TAKG 35 GNYE | 2011023 | |
| Black (for L1, L2, L3) | TAKG 35 BK | 2011024 | |
| N-Busbar: 10x3mm, 1m long, made of copper, tin-plated, current capacity 140A |  | NLS-CU 3/10 | 2011010 |
| Support: Made of insulating material, with locking screw, suitable for 10x3mm busbars |  | AB/SS | 2011011 |
| Double Support: Made of insulating material, suitable for 10x3mm busbars |  | AB/2SS | 2011012 |
