TURTK/S

Material Code： 2010026

Terminal Size: Thickness 8.1 x Height 50.9 x Width 72.5

Rigid Conductor: 0.5-10mm²

Flexible Conductor: 0.5-6mm²

Current: 57A

Voltage: 400V

With Marker Strip (ZB8)

Using TURTK/S BEN terminals allows for simple circuit testing. The terminals are designed such that the switchable sliding metal part can conduct the maximum current that the terminal wire clamp can withstand. The break points of the terminals are sturdy and durable.

Switching requires only a screwdriver, making operation very convenient. There is a socket on the connecting screw that can insert a 4111 test plug. When measuring current, a shorting plug can bridge adjacent terminals without terminal operation.

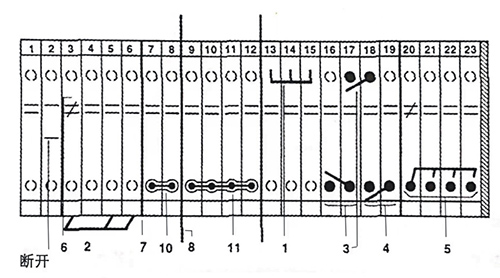

In the test circuits of the transformer's secondary circuit, use JURTK/S terminals and partitions. The terminals are equipped with a longitudinal slider fixed by screws. By loosening the screws, the slider can easily slide. The switch position is also clearly visible.

A simple transformer test circuit only requires two terminal pieces. Compared to other terminals, this reduces the number of terminals used and the occupied space.

Additionally, these terminals have fewer accessories, are easy to install, have clear circuits, and are convenient to operate.
